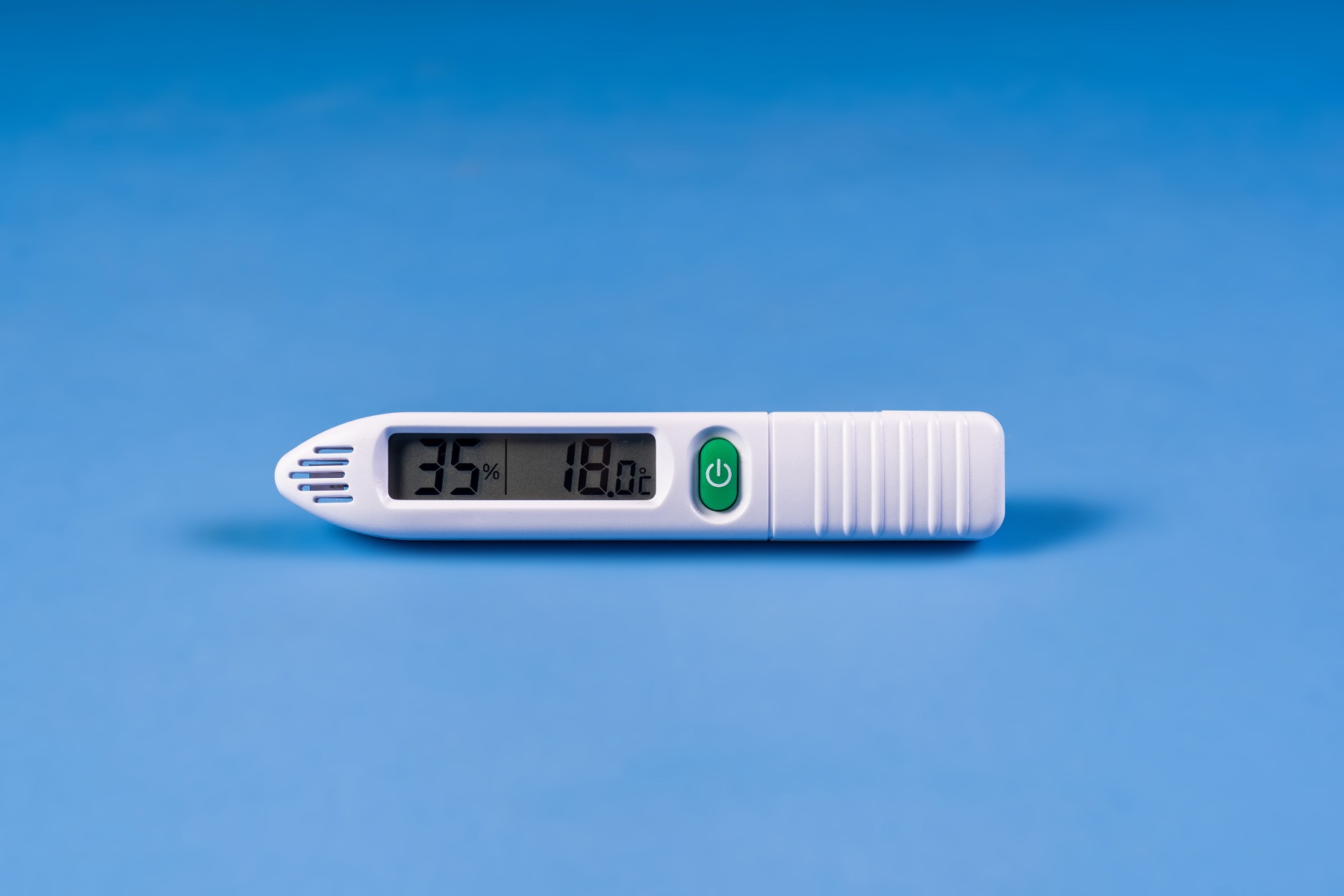

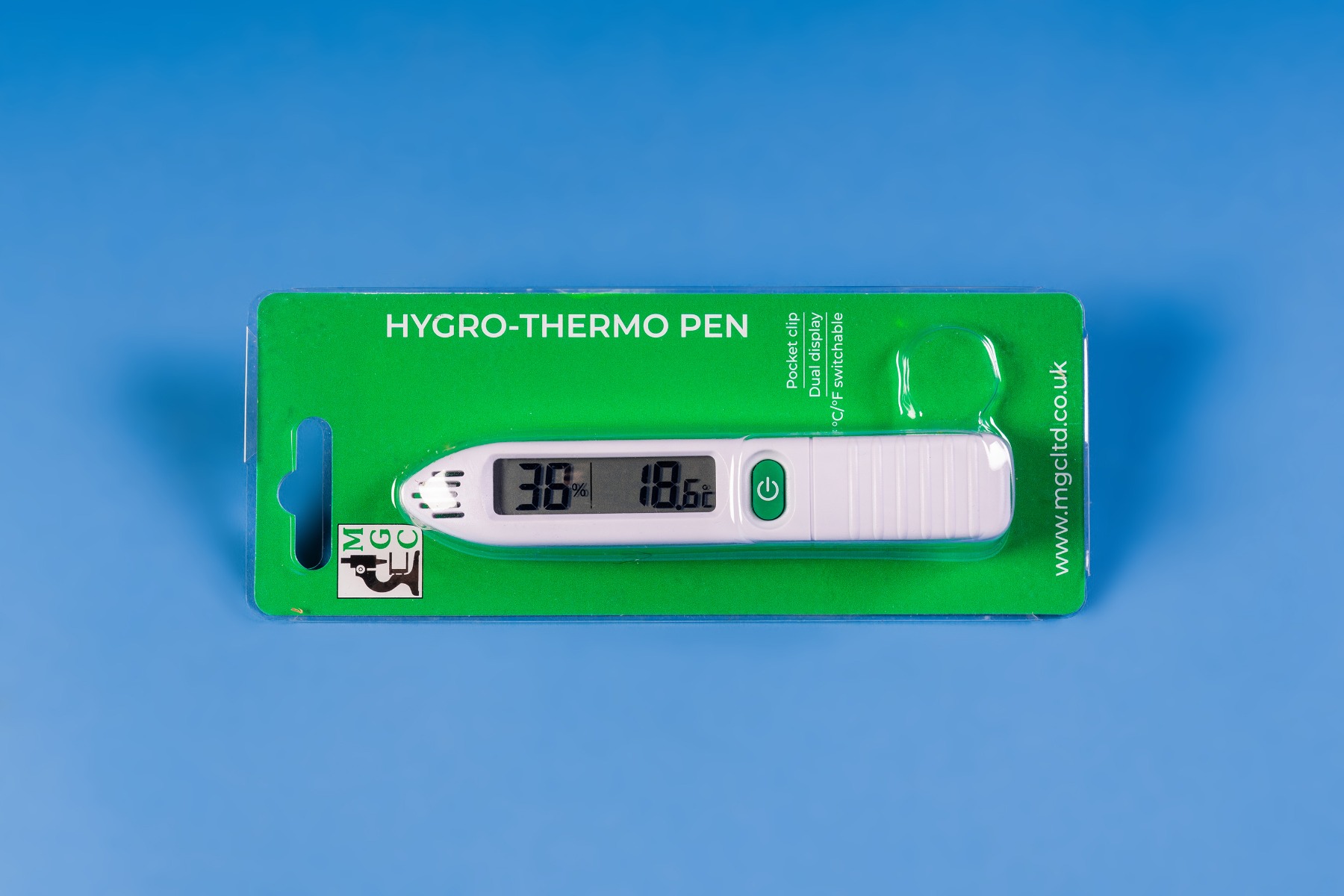

MGC Hygro Thermo Pen

The MGC Hygro Thermo Pen quickly measures humidity and temperature in a property and is easy to carry as it simply clips in to a pocket for convenience.

INSTRUMENT OPERATION - Insert the battery into the battery compartment located at the end of unit and press the ON/OFF button on the front of the instrument. The instrument will perform a self-test, and within five seconds the ambient readings will be displayed. The unit is switched on/off by pressing the button located on the front. The instrument monitors the humidity and         temperature simultaneously.

MAX/MIN MEMORY FUNCTION - To display the maximum reading press the MAX/MIN button located at the back of the unit and a 'Max' symbol will be displayed. Press the MAX/MIN button again to display the minimum reading and a 'Min' symbol will be displayed. To return to normal readings press the MAX/MIN button again.To clear the max/min temperature memory, press the MAX/MIN button for three seconds or turn the instrument off. Please note: maximum and        minimum readings are not saved so switching the thermometer off will clear these readings.

°C/°F - Slide the °C/°F switch on the back of the instrument to change between Centigrade and Fahrenheit.

BATTERY REPLACEMENT - The battery will need to be replaced when the instrument displays ' ' or if the display dims. Replace the battery with a 3 volt lithium coin cell (CR2032). The battery is located under the battery cover at the end of the instrument.

EMC/RFI - Instrument performance may be affected if operated within a high frequency radio field, such as near a mobile phone, or if subjected to an electrostatic shock.

Specification

Range 0 to 49.9 °C & 20 to 95 % rh

Resolution 0.1 °C/°F & 1% rh

Accuracy ±1 °C & ±5 % rh

Sensor type Thermistor & capacitance

Battery 3 volt CR2032 lithium coin cell

Battery life 15,000 hours

Display Custom LCD

Dimensions 20 x 23 x 130 mm

Weight 31 grams

GUARANTEE - This instrument carries a one-year guarantee against defects in either components or workmanship. During this period, products that prove to be defective will, at the discretion of MGC, be either repaired or replaced without charge. The product guarantee does not cover damage caused by fair wear and tear, abnormal storage conditions, incorrect use, accidental misuse, abuse, neglect,             misapplication or modification. Full details of liability are available within MGC's Terms & Conditions of Sale at etiltd.com/terms. In line with our policy of continuous development, we reserve the right to amend our product specification without prior notice.
